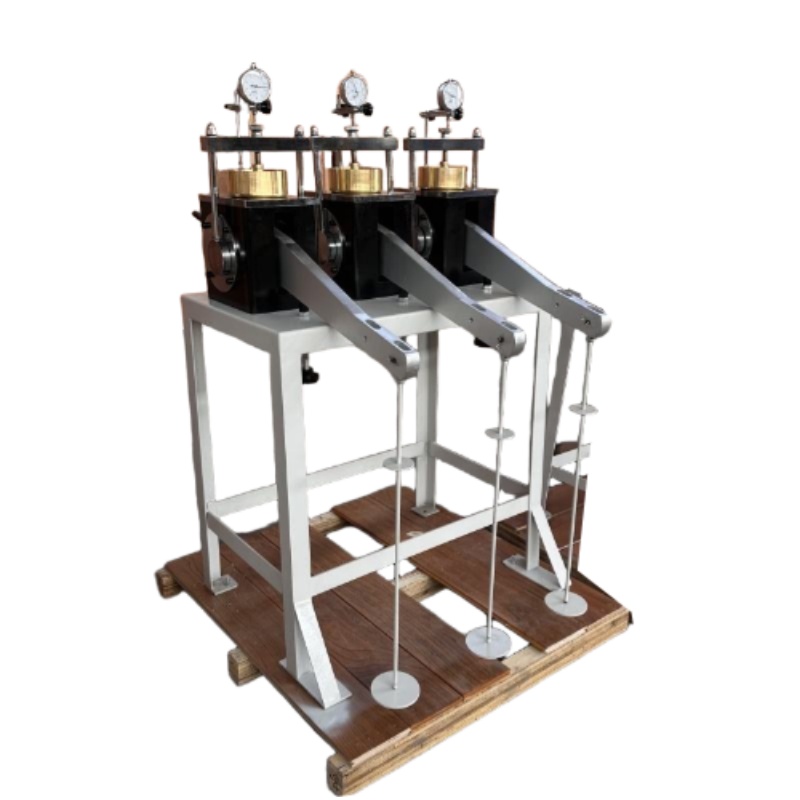

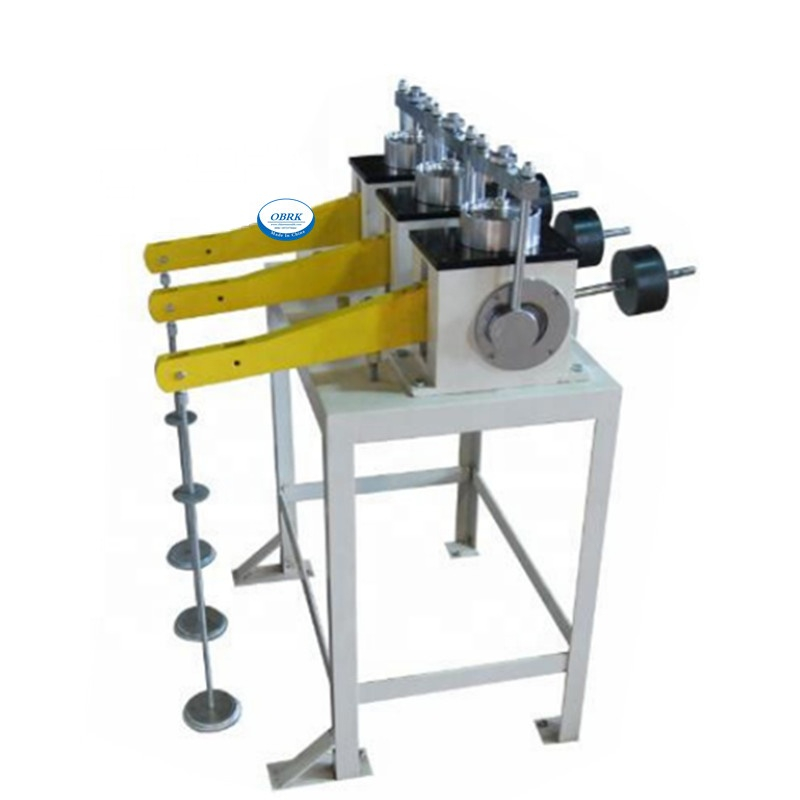

Triplex Soil Consolidation Apparatus/oedometer test apparatus
Standard: BS 1377-5, ASTM D2435, AASHTO T216, NF P94 090-1 Designed to provide reliable results from a unit which is compact without sacrificing accuracy and repeatability.
It comes with triple beam ratio and compact design ensures space saving. It is used in soil compression test to detect the relationship between soil pressure and deformation,
calculate the unit deposition, compression index, resilience index and consolidation coefficient of soil, etc.
Items name | High Pressure Triplex Consolidation Test Apparatus |
Model | WG-3B |
Specimen area | 30cm2 ,50cm2 |
Leverage ratio | 20:1 ,24:1 |
Consolidation container | One beam, two beams, three beams |
Frame | Steel structure |
Pressure range | 12.5 Kpato4000Kpa/30CM² ,12.5Kpato 2000Kpa/50CM² |
Load level(Kpa) | 12.5, 25, 50, 100, 200, 300, 400, 800, 1600, 3200 |
