Designed and manufactured to test concrete sewer and drain pipes used in drainage works,water and irrigation supply system etc.Used for external pressure test of concrete and reinforced concrete drain pipes.
Model number : PT-W600 | ||
Load Sensor | 600kN | |
Power | AC380V/50HZ | |
Distance between two columns | 2600mm | |

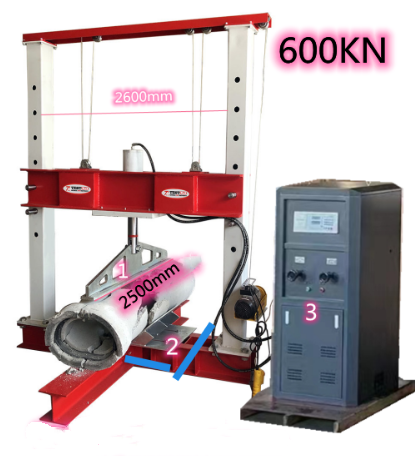

Upper pressure plate size（marks 1) | length:2500mm ，Width:12mm ，and with rubber | |
Cylinder stroke | 0-500mm | |
Beam moving speed | 100mm/min | |
after installation dimension | About 300x350x460CM (LxWxH) | |
Controller part | Digital display as marks 3 | |
