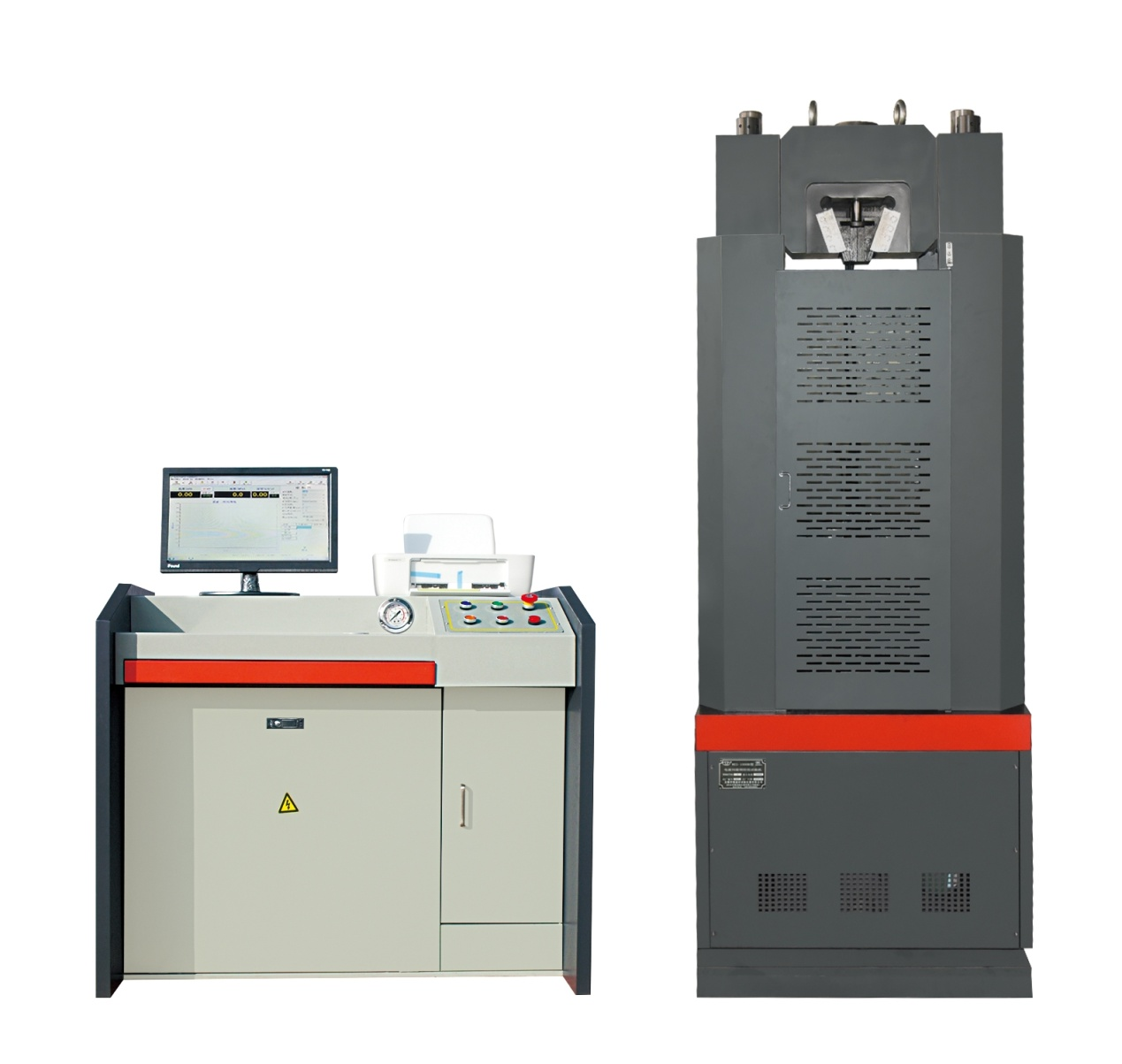

This series of testing machines are mainly used for tensile, compression, bending and other tests of metal materials, and equipped with cold bending accessories, which can also be used for process tests of metal materials. Therefore, the testing machine meets the needs of scientific research institutions, capital construction units, gold, machinery manufacturing and various school laboratories and other units of the test.
Model NO. | WES-2000B |
Maximum load | 2000KN |
The value of the testing machine accuracy | 1class |
Maximum distance between drawing collets (counting piston stroke) | 800 |
Effective distance between two lead screws (mm) | 680 |
Clamping thickness of flat sample (mm) | 0-50 |
Maximum clamping width of flat specimen (mm) | 120 |
Clamping diameter of round sample (mm) | φ0-φ70 |
Maximum distance between upper and lower platens (mm) | 650 |
Size of upper and lower platen (mm) | 250*250 |
Distance between two fulcrum during bending test (mm) | 50-400 |
Maximum width of stick during bending test (mm) | 180 |
Maximum height of bending test (mm) | 205 |
Piston diameter * stroke (mm) | φ360*250 |
Rising speed of worktable (mm/min) | 0-45 |
Lifting speed of moving beam (mm/min) | 200 |
Motor power of oil pump (KW） | 1.1 |
Power of moving beam lifting motor (KW) | 1.5 |
Chuck clamping mode | hydraulic pressure |
