Standard: EN 1542, EN 1348, EN 1015-12, ASTM C1583
Strength Evaluation：
Used to determine the bonding strength of concrete overlay adhesion. Also suitable for measuring the strength of applied coatings such as plastic, mortars, plasters, tiles, bituminous coats as well as paint & other coatings on metal.

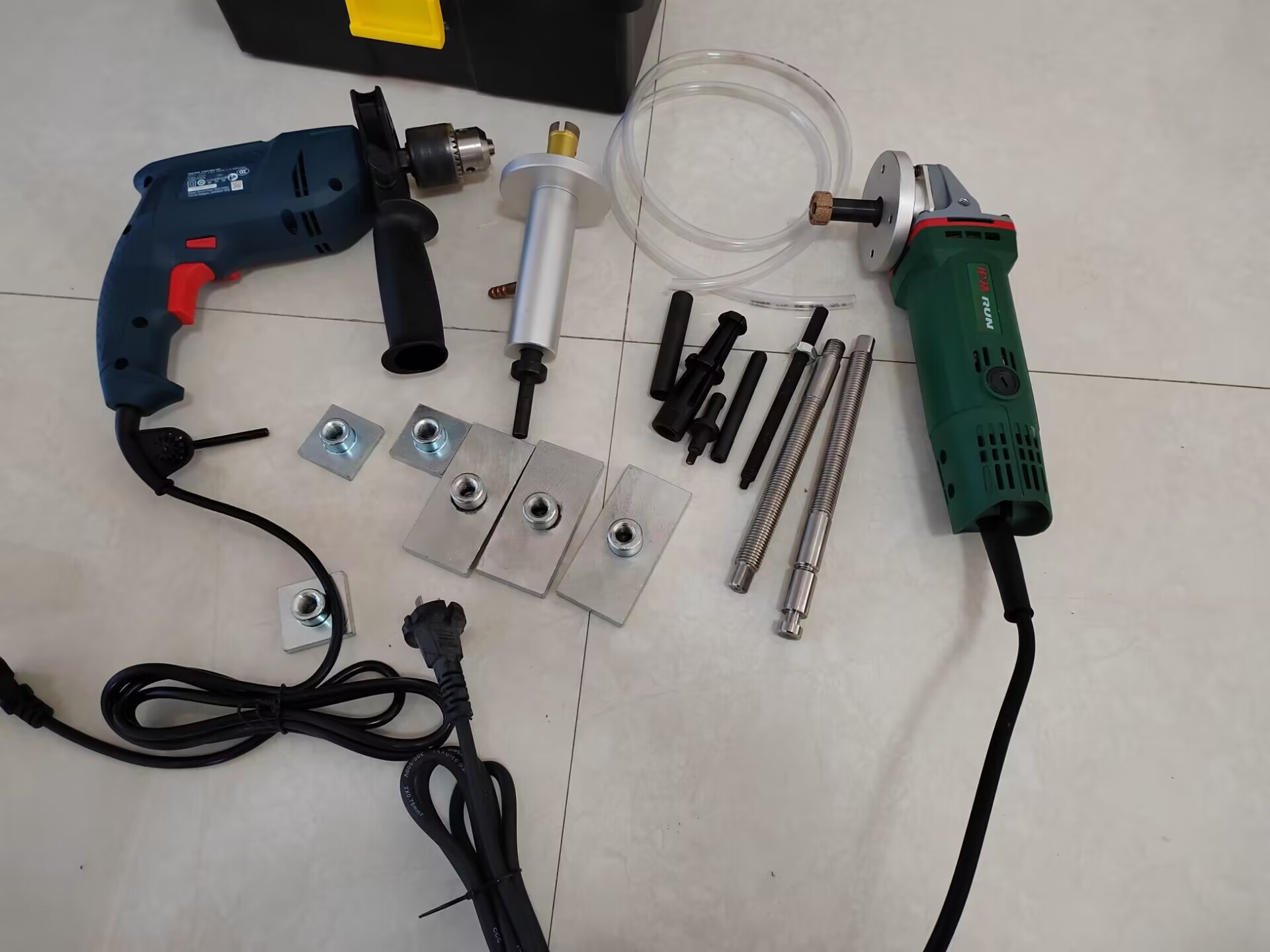

It tests at any measuring point on the component, without requiring specimen preparation. However, a suitable depth of coring diameter same as the test disc is prepared prior to pulling off the surface bonding. Supplied Without accessories.

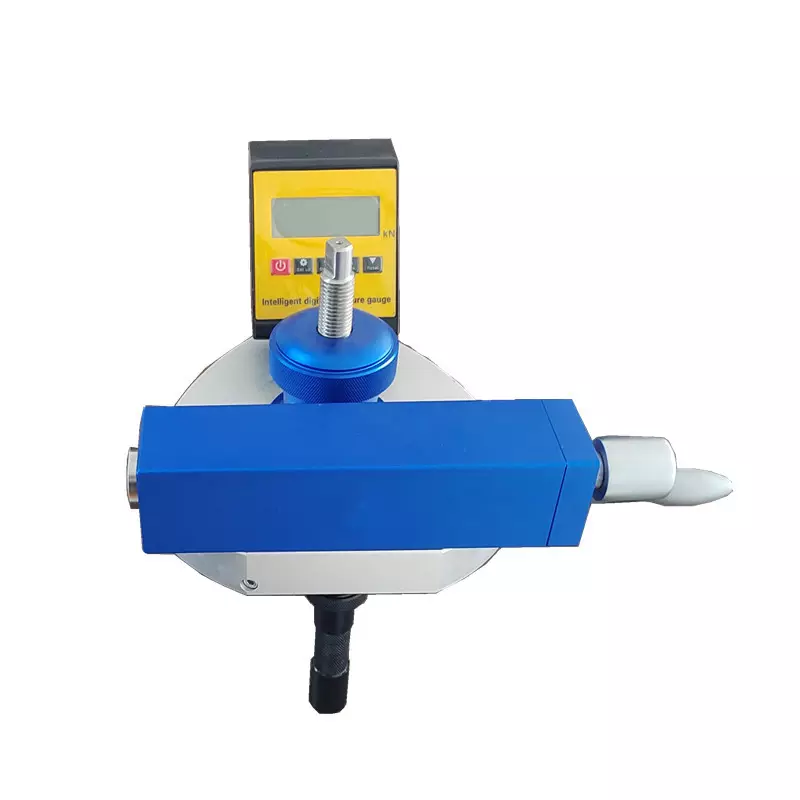

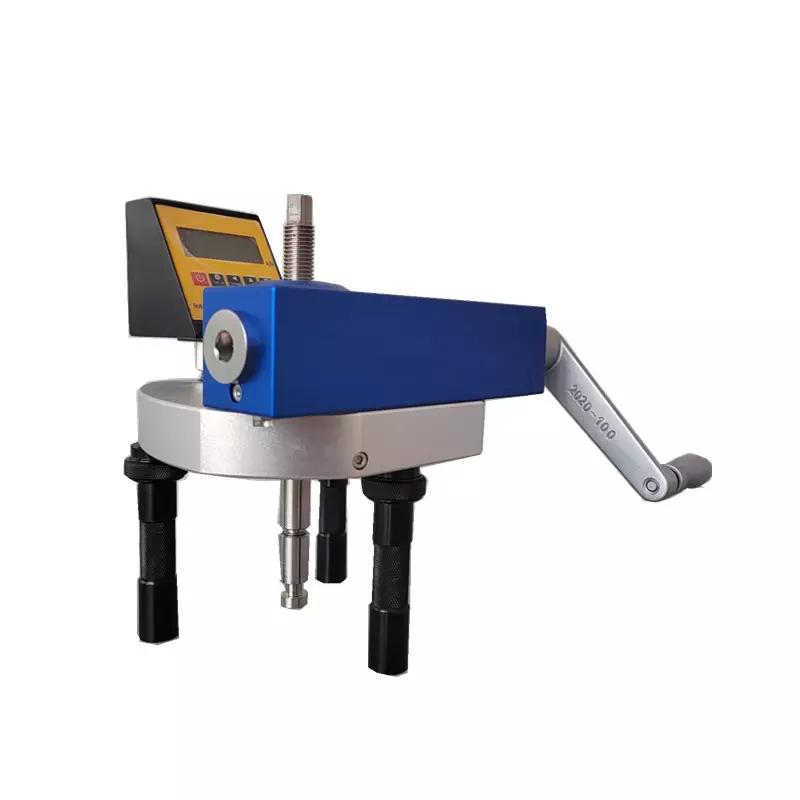

Name | Concrete Digital Pull Off Tester 40 kN (Bonding Strength) |
Standard | EN 1542, EN 1348, EN 1015-12 |
Model | LR-40 |
Max. Load Capacity | 0-40KN |
sensitivity | 0.001Kn |
Accuracy | ≤1.0% F.S |
TePiston Travel | 8mm |
LED Display | Ø85 mm LED Screen |
Data Memory | more than 500 Test Result |
Weight | about 6Kg |
Dimension | 45x35x25CM |
