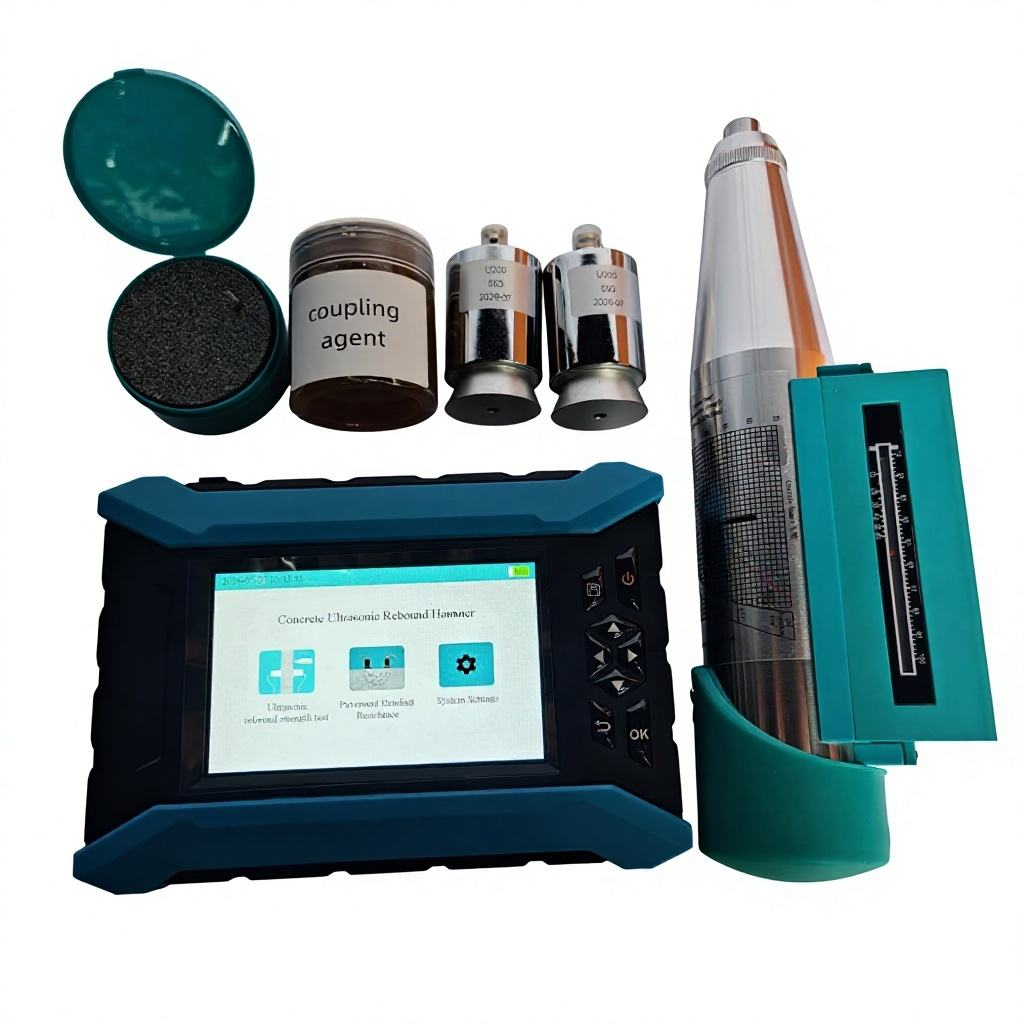

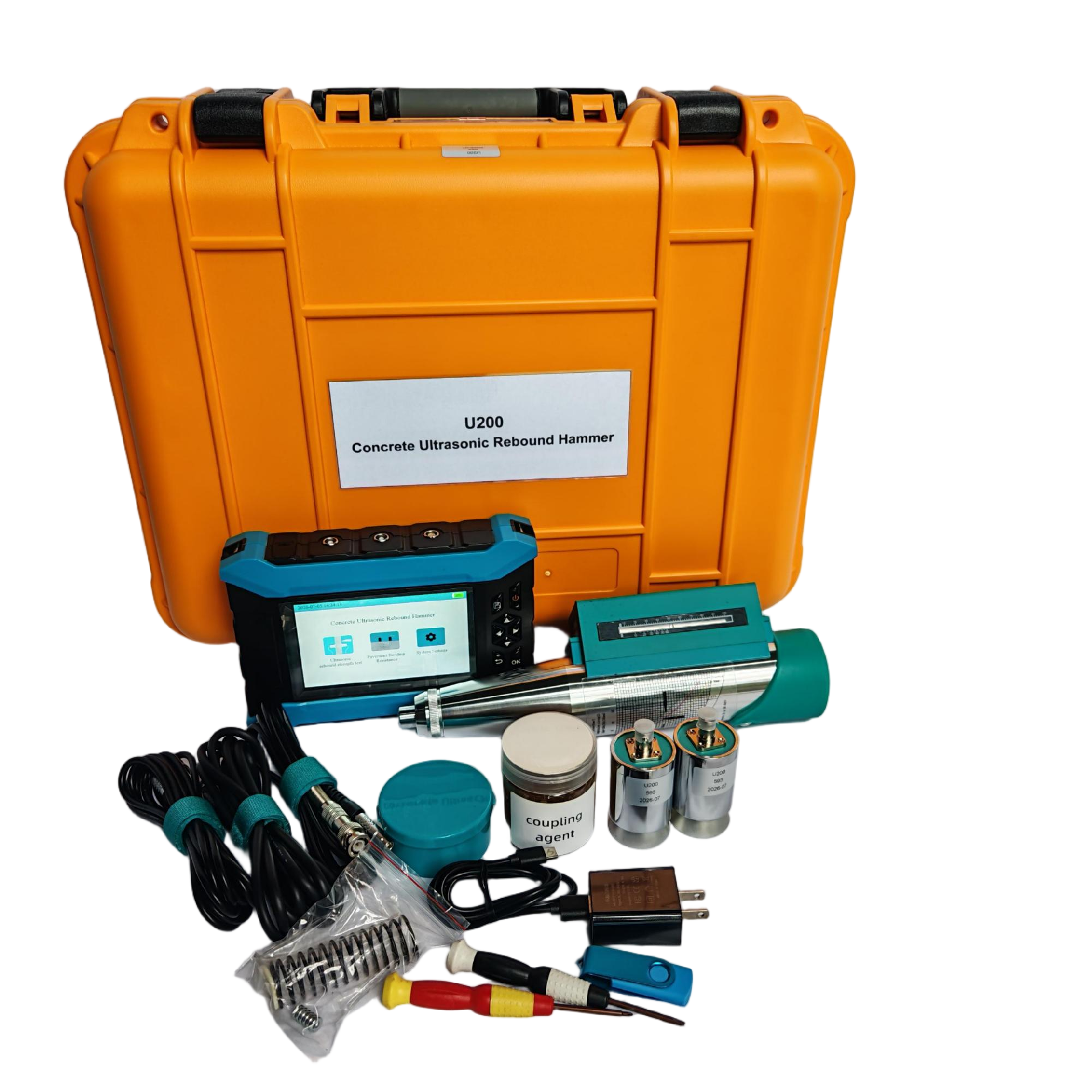

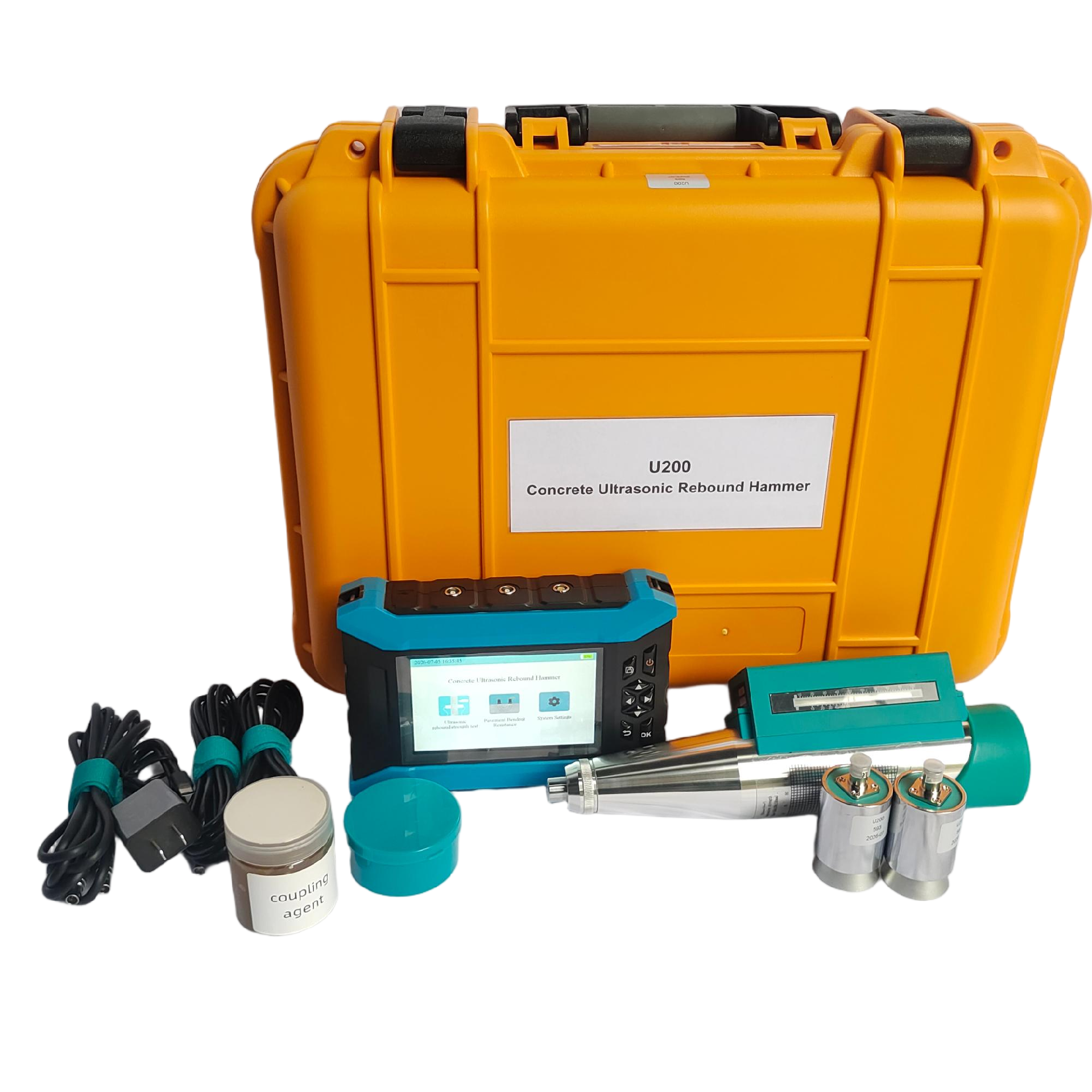

U200 Concrete Ultrasonic Rebound Hammer
U200 2‑in‑1 concrete ultrasonic rebound hammer for non‑destructive concrete strength test. Combine UPV ultrasonic pulse velocity & Schmidt rebound test, portable NDT testing equipment.
Product name | U200 Ultrasonic pulse velocity tester |
Type | GTJ-U200 |
Host Parameter | Screen Size:5 inches Volume:195*140*45mm Weight:0.85kg Waterproof level：IP65 |
Ultrasonic indication Error | ±0.1μs |
Ultrasonic Work Frequency | 50KHz |
Ultrasonic Frequency Range | 5Hz~500KHz |
Stiffness of Spring Strike | 785.0±40.0 (N/m) |
Impact Length of Ram | 75.0±0.3mm |
Impact Energy | 2.207J |
Average rebound value | 80±2 |
Power Supply Mode | Large capacity lithium battery. Working time over 8 hours. |
Working Environment | -10℃~40℃ |
Packing | Material: engineering plastic |
