Concrete Coring Drill Machine

STANDARD: EN 12697-27

The core drilling machine specially used in laboratory and site cutting core sample such as rock or other material. Core bit order separately.

•

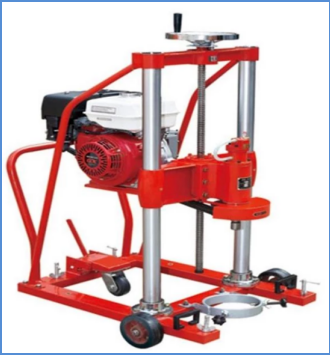

• Model NO. HZ-20(Petrol control)
  Max Dia of drilling	200MM
  Max depth of drilling	700MM
  Rotate speed	800-1200 r/min
  Power	5.5/9P
  Weight	130kg
  Dimension	1080X780X1150 mm

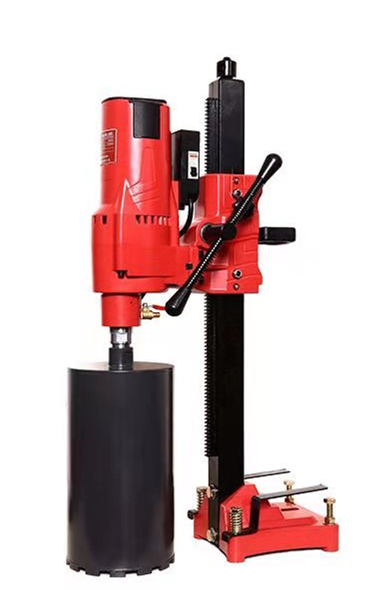

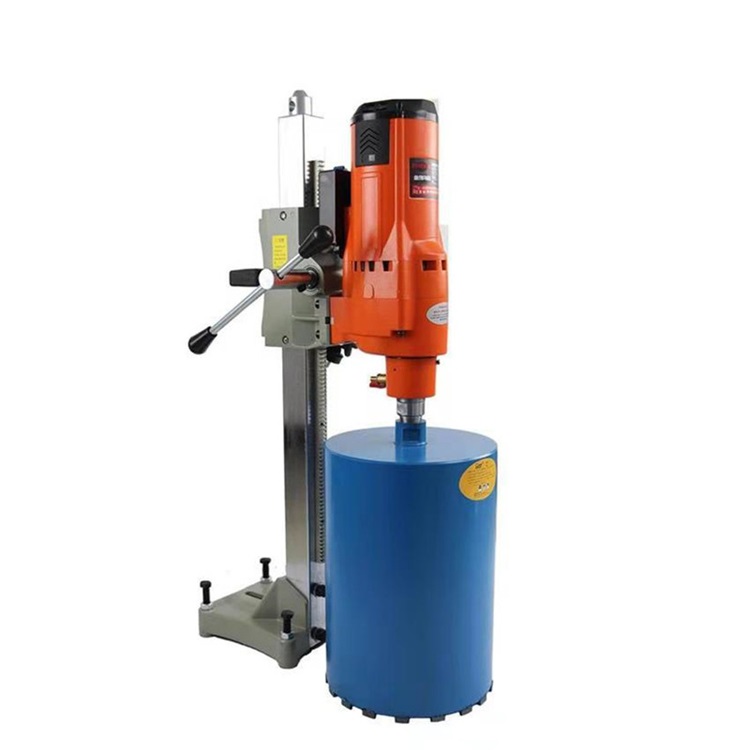

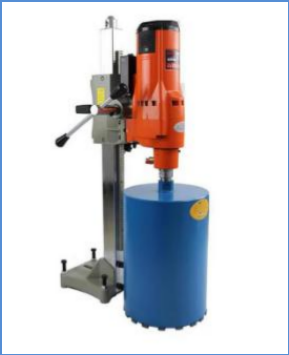

• Model NO.	HZ-250	HZ-250L
  Max. Drilling Dia.	200mm	250mm
  Power	3400W	3300W
  Ø Shaft thread	1¼ -7,1¼ -3	1¼ -7,1¼ -3
  No-Load Speed	700 r.p.m.	700 r.p.m.
  Voltage	110V/220V/240V	110V/220V/240V
  Net/Gross	22Kg/25Kg
  Packing size	84x34x23CM

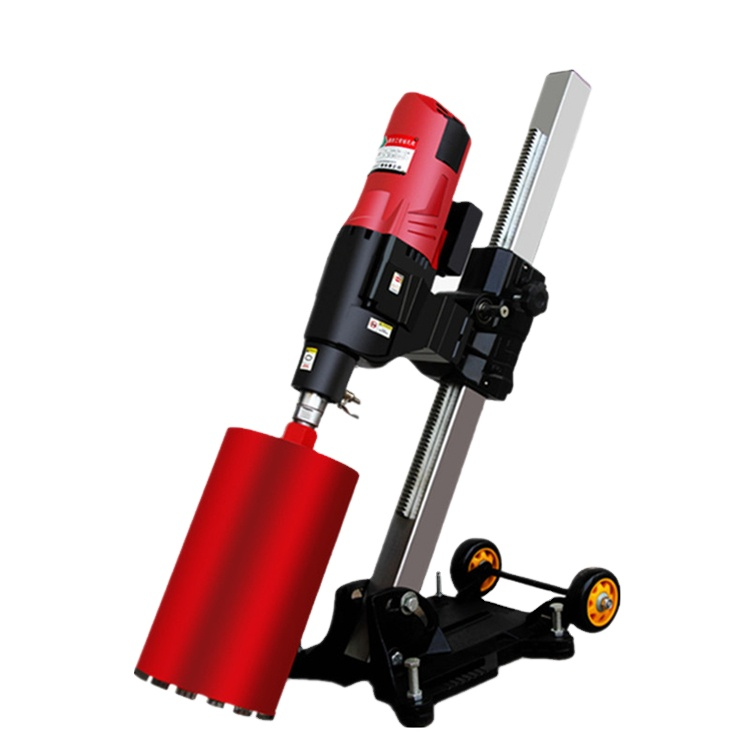

• Model HZ-250L support adjustable, can drill 0-90° inclined hole.

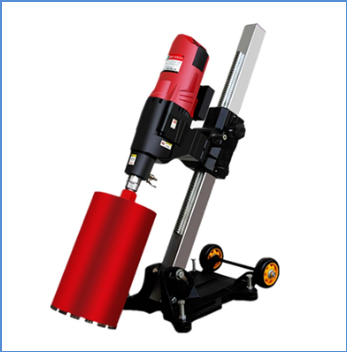

• Model HZ-180W can 360°work.

• Model NO.	HZ-125	HZ-180W
  Max. Drilling Dia.	125MM	180mm
  Frequency	50-60Hz	50-60Hz
  Power	1800W	2300W
  No-Load Speed	0-1900r.p.m	750 r.p.m
  Voltage	110V/220V/240V	110V/220V/240V
  Net weight	5.8Kg	30kg

• Diameter 8mm to diameter 400m can customize for you, and any longth.

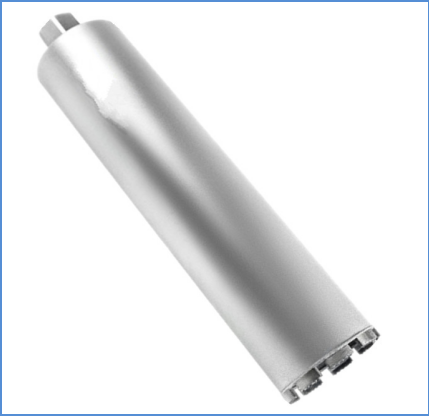

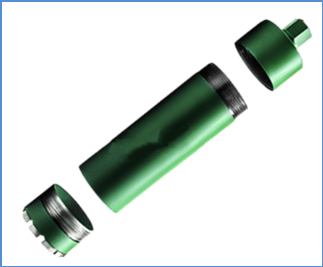

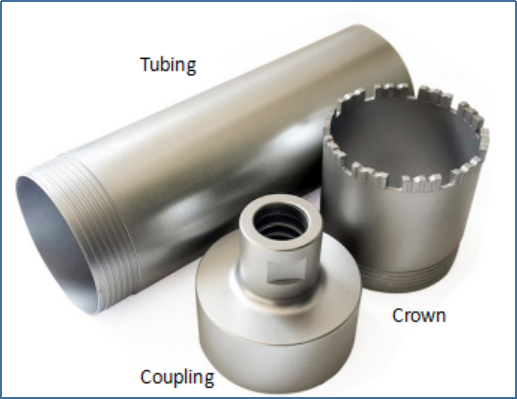

• Concrete Core Bits:

• We accept all kinds of custom made, non-standard legnth and the diameter of drill bits,can satisfy foreign cusotmers with all-round demand.

•
